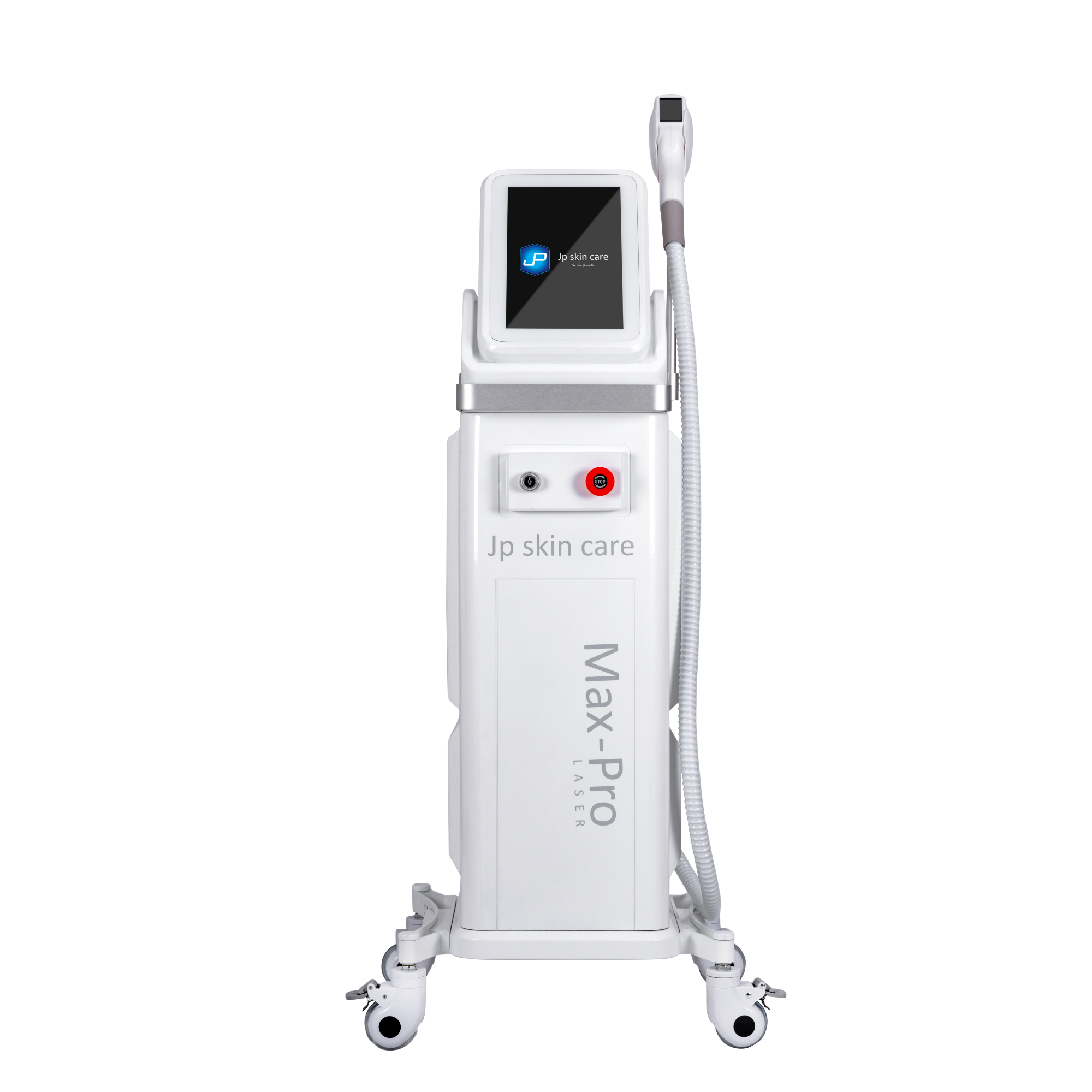

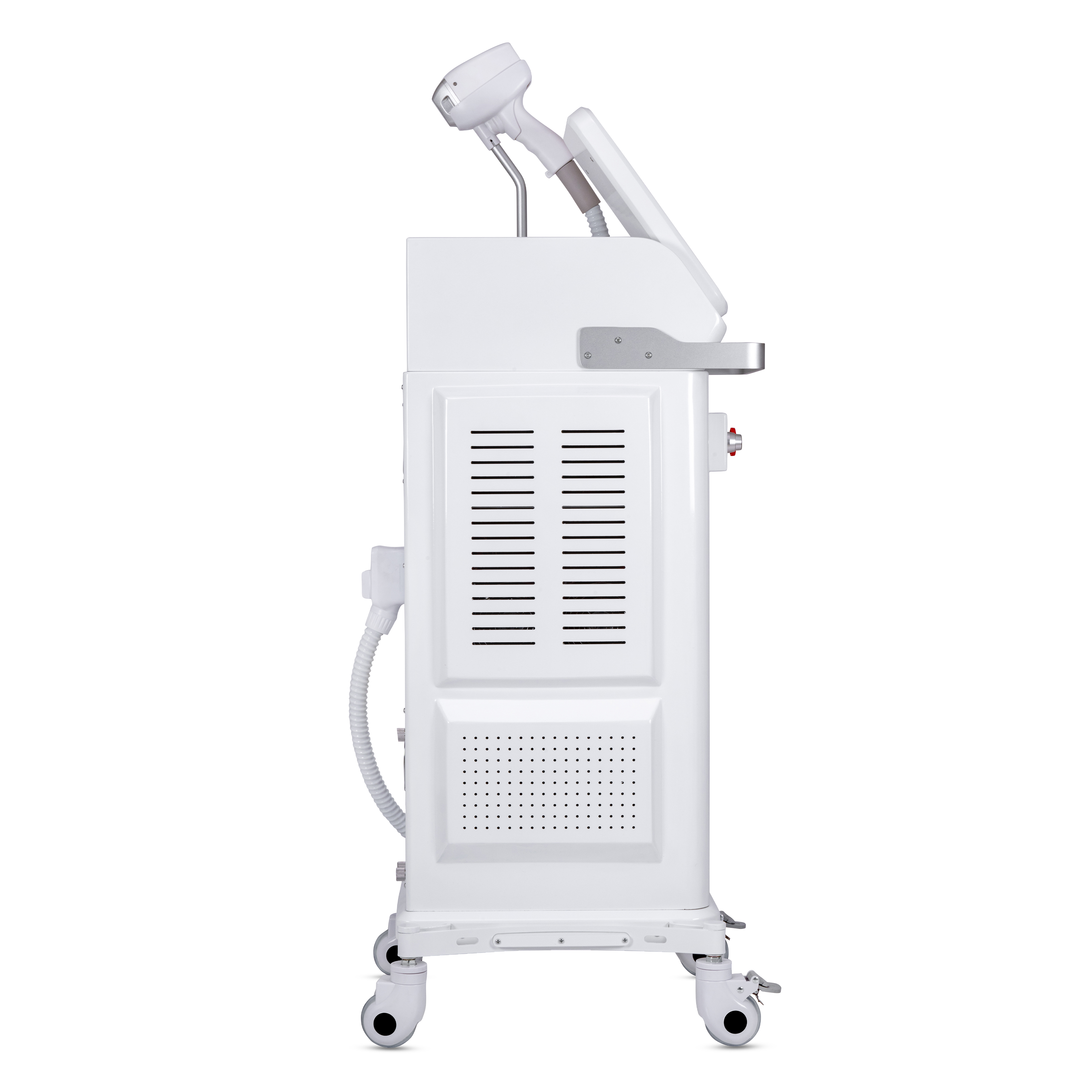

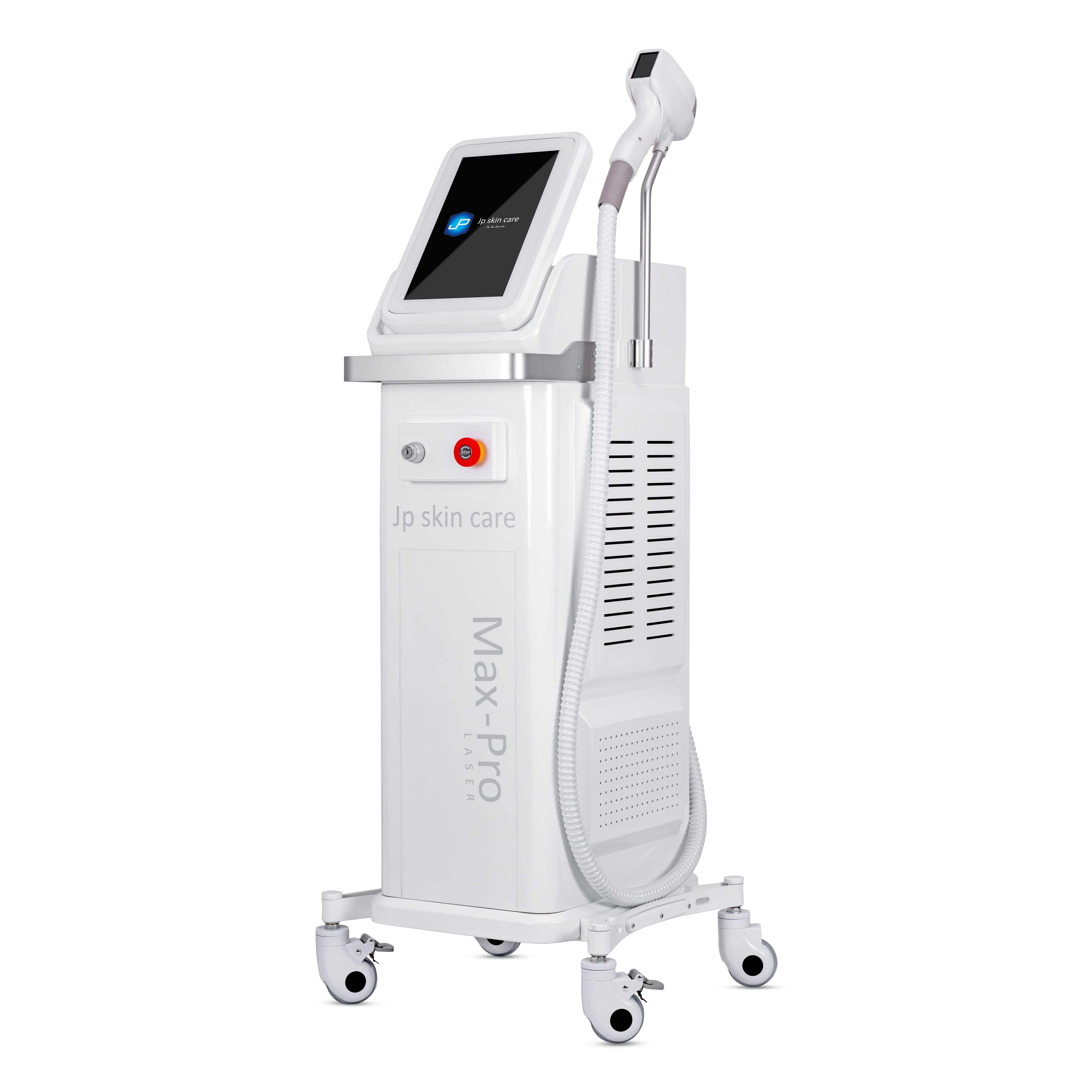

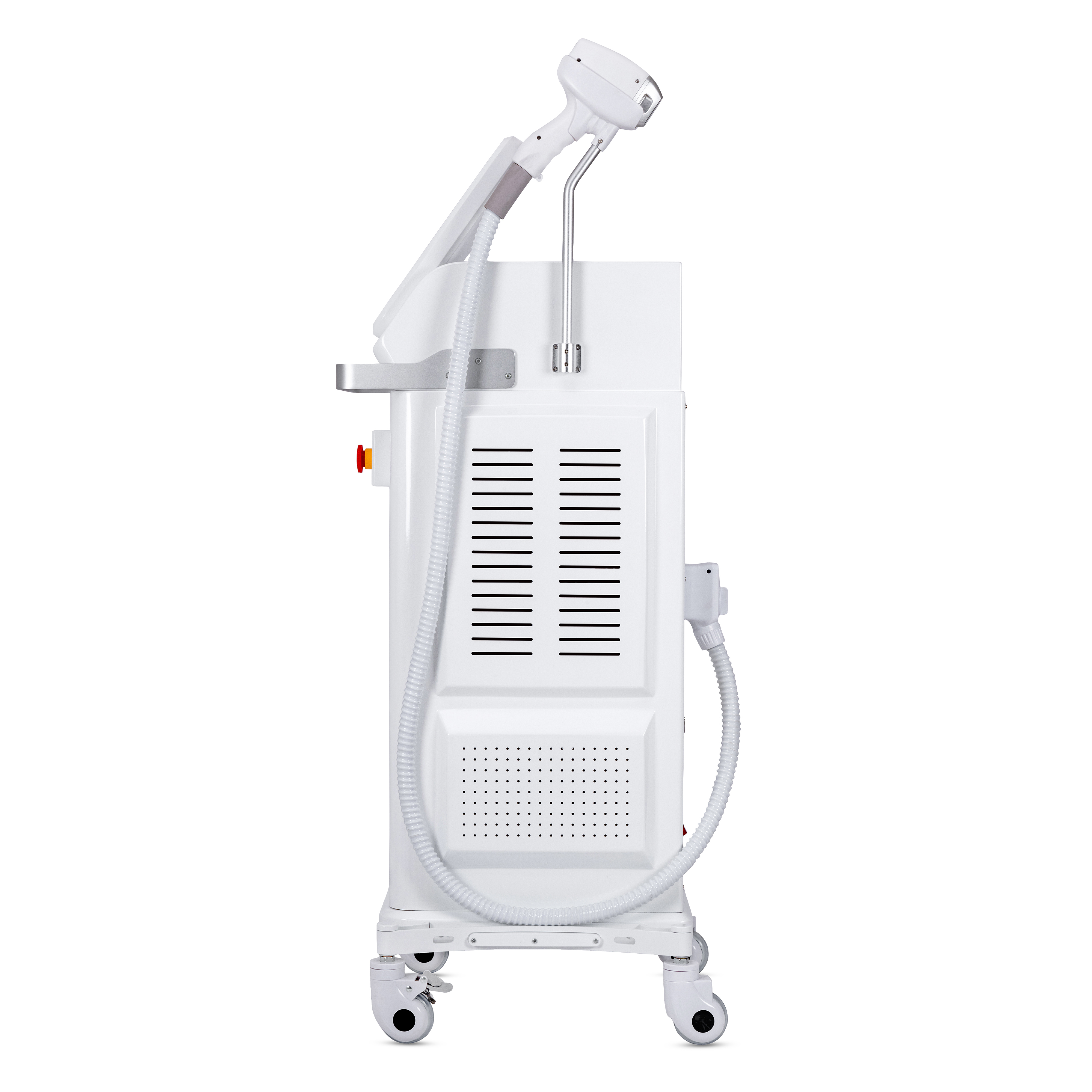

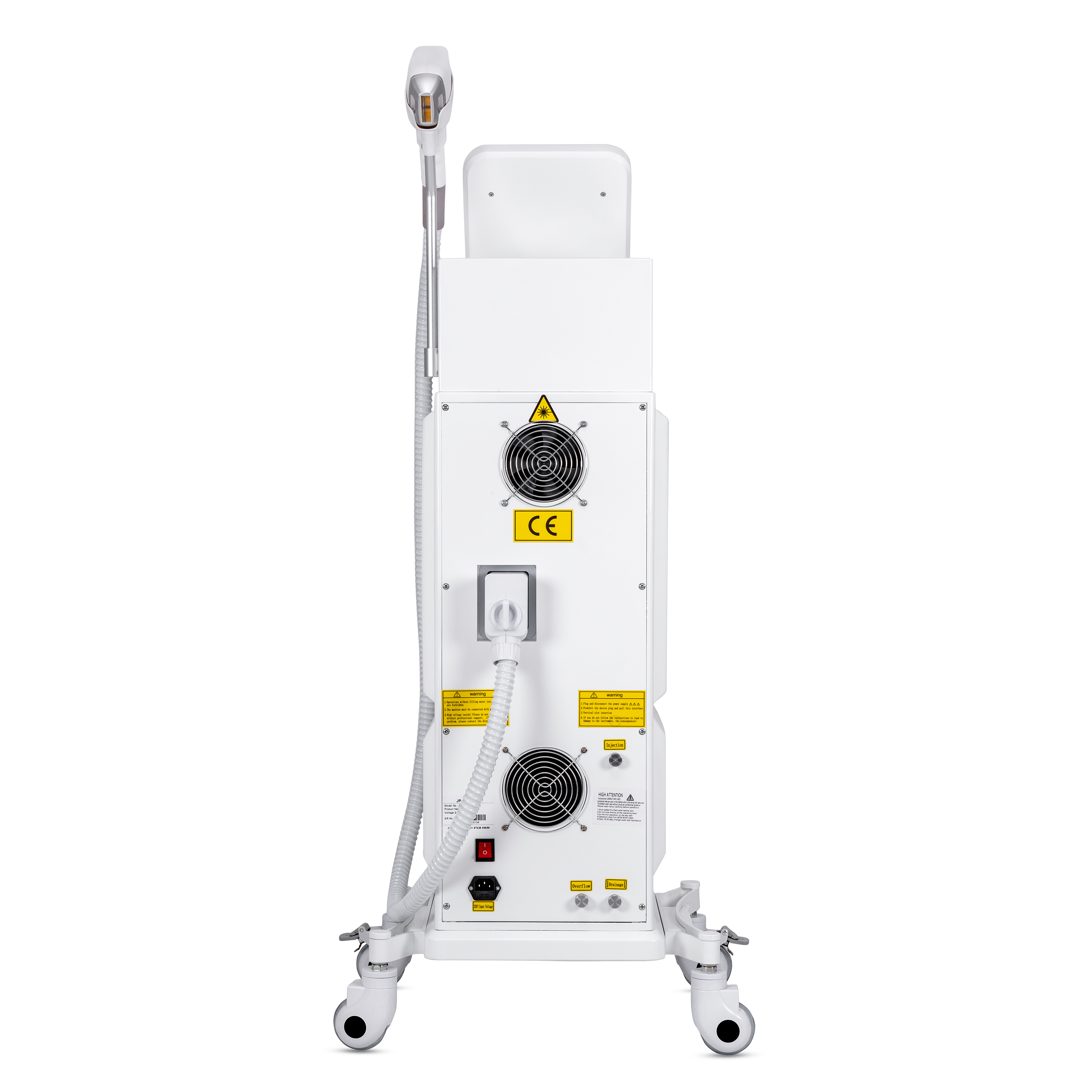

Diode Max-Pro (JP-14)

Wavelength Features

• 755 nm: Offers strong melanin absorption, making it ideal for fine or light-colored hair. Effectively targets the bulge area of the hair follicle, particularly useful for superficial encrustations.
• 808 nm: The industry-standard wavelength for hair removal. Provides deep follicle penetration with high power output—suitable for most hair and skin types.
• 1064 nm: Absorbed less by melanin, making it safe and effective for darker skin tones. Provides the deepest penetration to reach and treat deeply rooted follicles.

Accessories Included

• Main Unit – 1 Nos.
• Diode Handle – 1 Nos.
• Diode Handle Stand – 1 Nos.
• Diode Handle Tips – 1 Set
• Goggles for Operator – 1 Nos.
• Patient Eye Protection – 1 Nos.
• Water Funnel – 1 Nos.
• Power Cable – 1 Nos.

Complimentary Items

• Gel – 1 Jar (5 kg)
• Hair Trimmer – 1 Nos.

Warranty Information

• 1-Year Warranty for Machine, Handles, and Accessories.

Important Warranty Notes

• Warranty does not cover burned laser bars or any physical damage.
• Diode Handle: Covered for 1 year or up to 10 million laser shots, whichever comes first.

Features

• Hair Reduction and Skin Rejuvenation

Technical Specifications

General Information

• Model No.: JP-14
• Product Name: Diode Max-Pro
• Laser Type: Hair Reduction Laser System
• Machine Output Power: 3000 W
• Color: White
• Input Power: 230V AC, 50Hz
• Weight: 58 kg
• Dimensions (H × W × D): 140 × 64 × 70 cm

Diode Laser System

• Diode Laser Chip: Jenoptik (Germany) – 16 units
• Diode Output Power: 1600 W

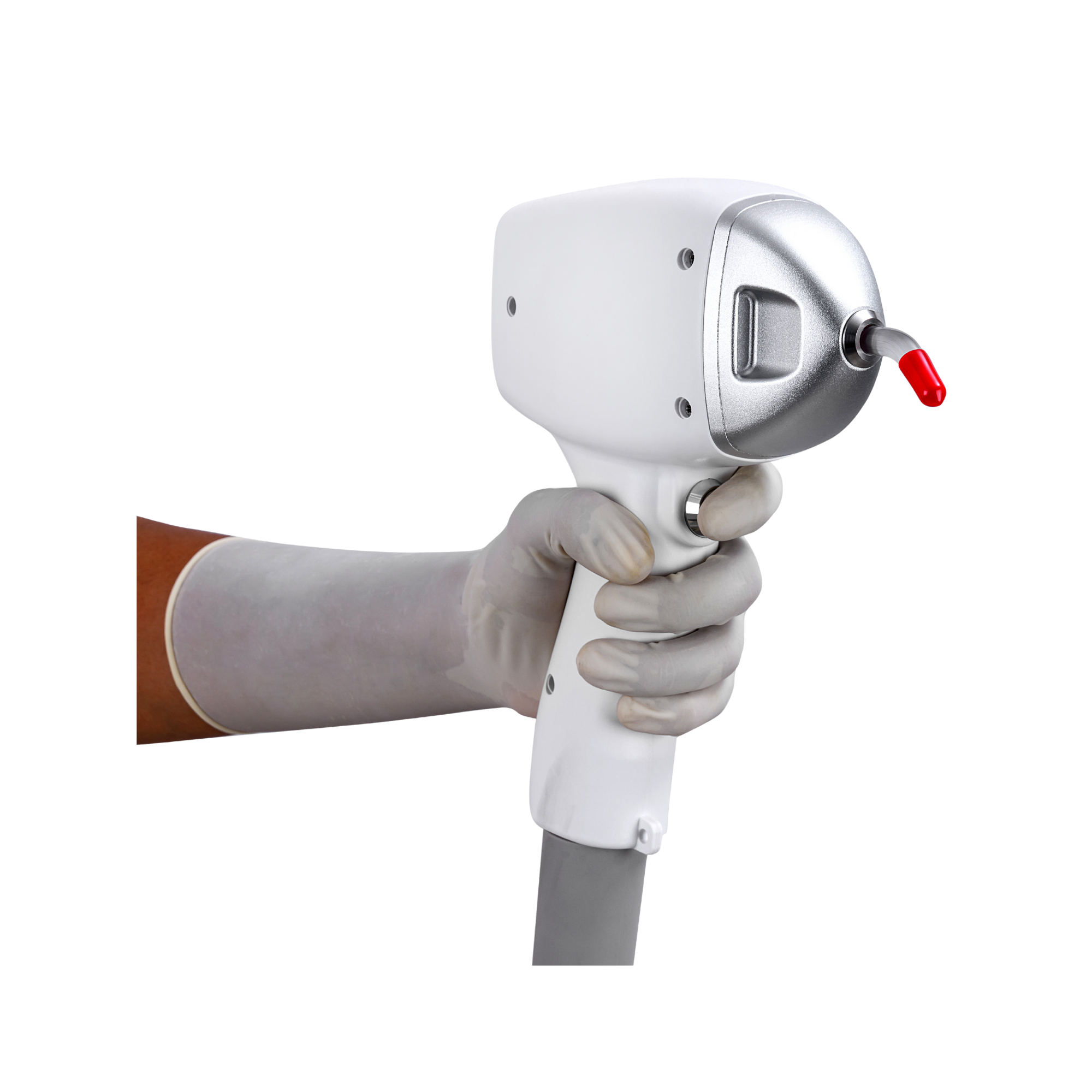

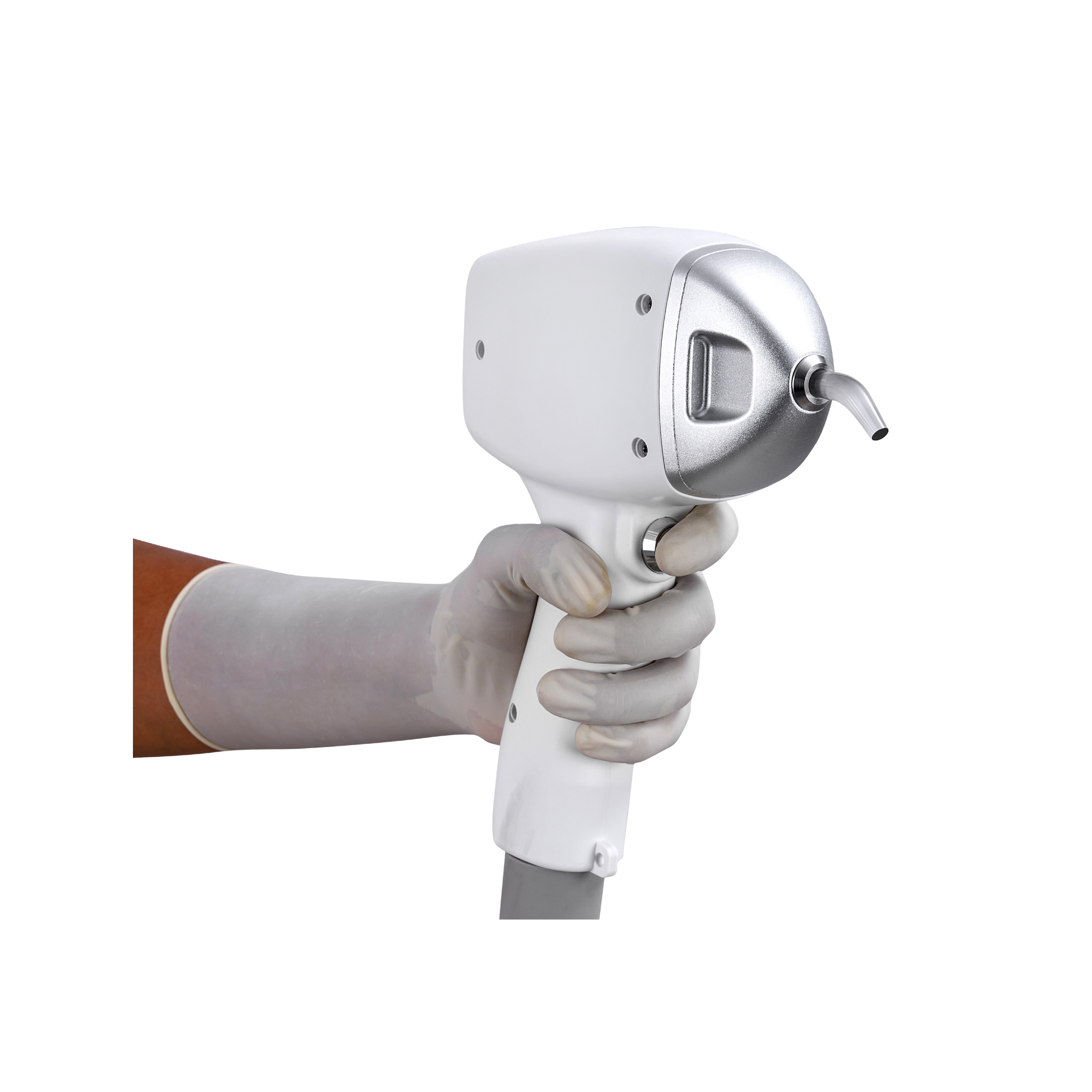

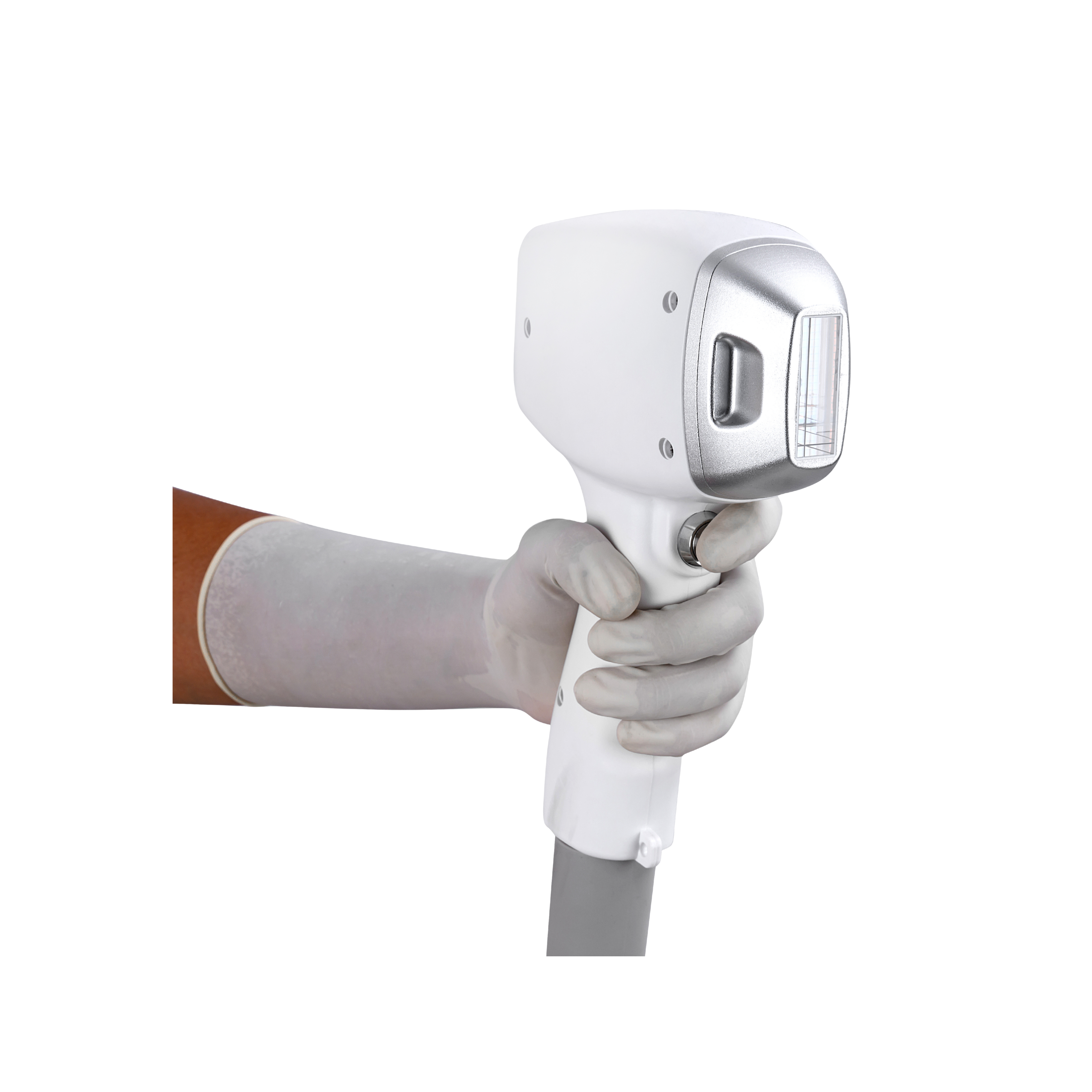

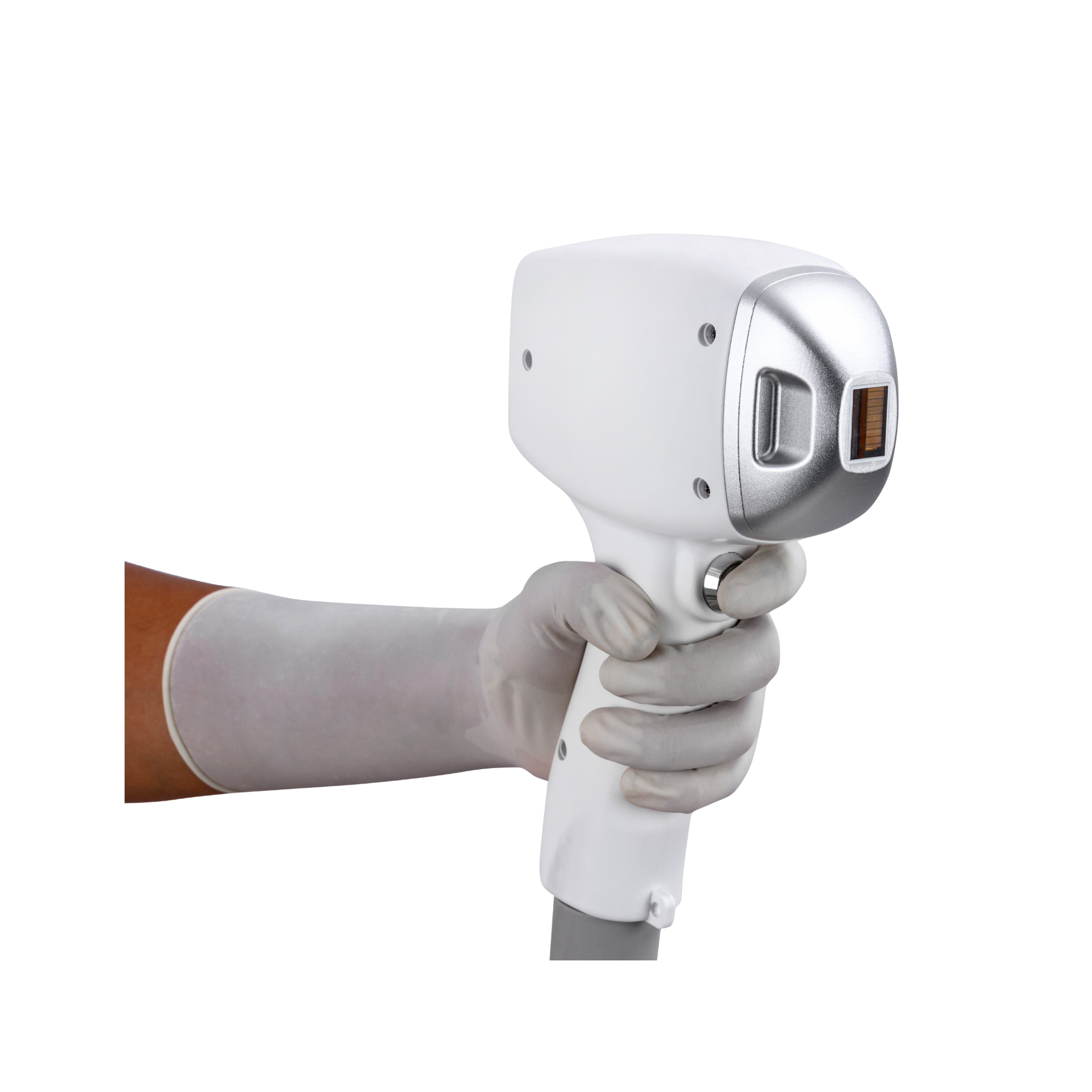

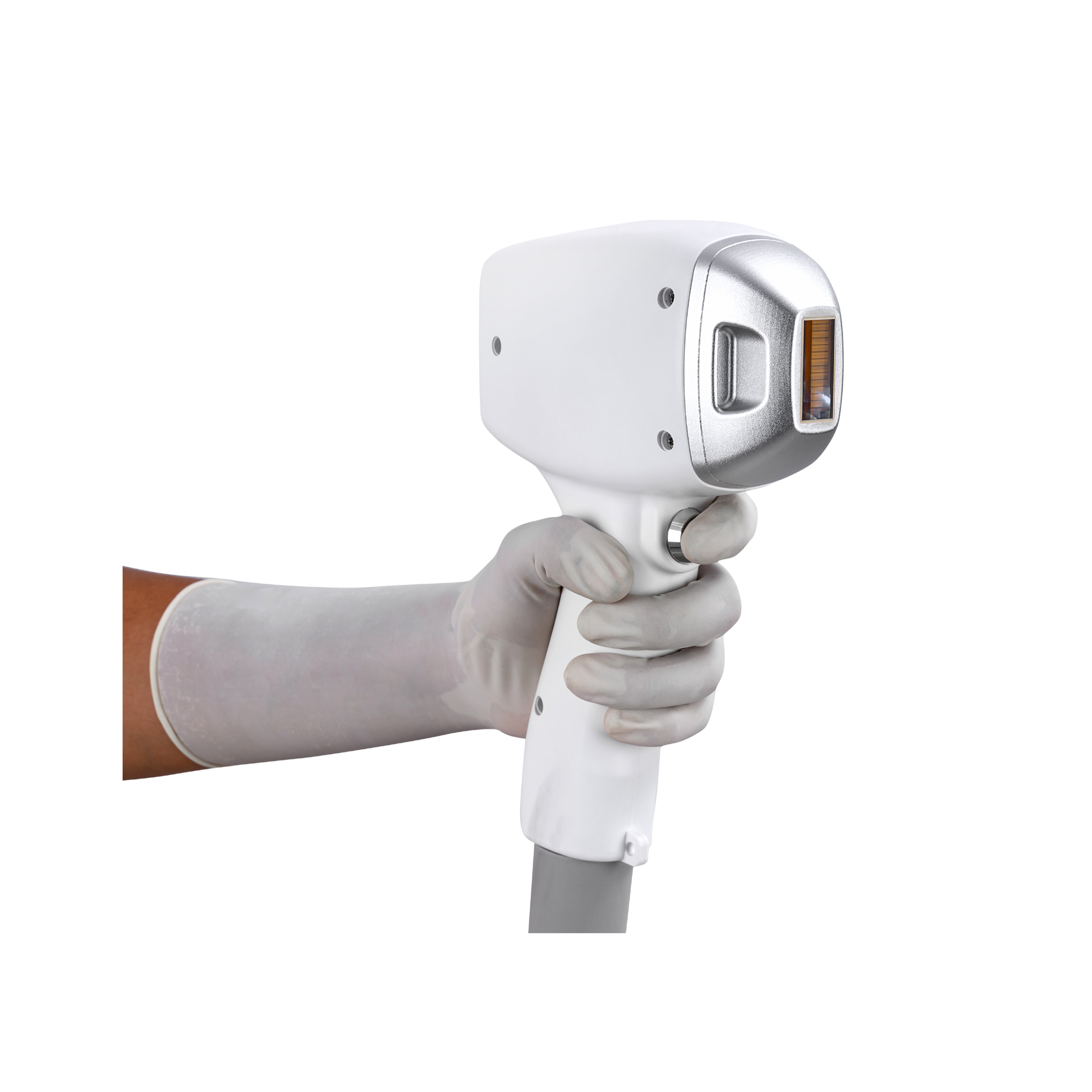

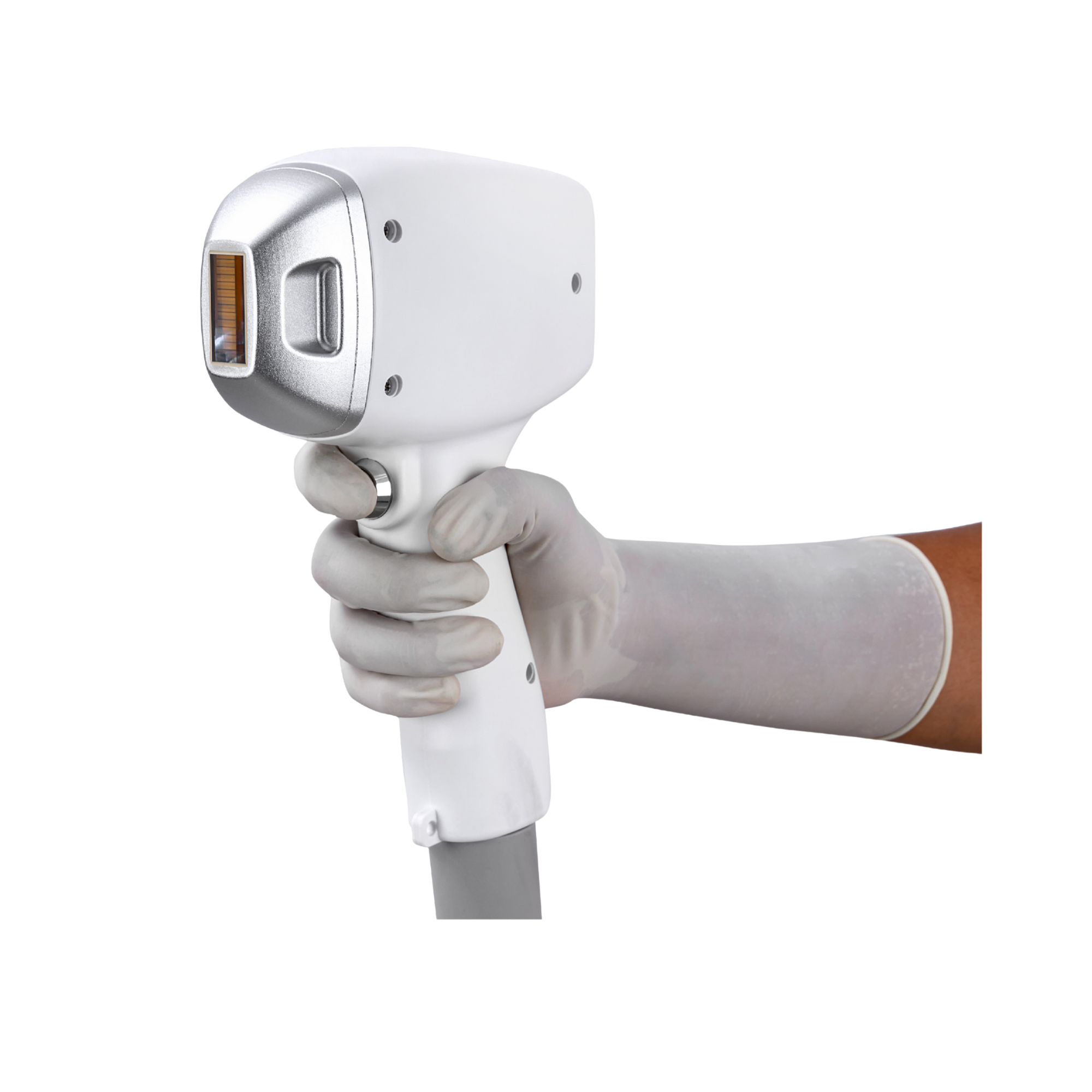

• Handle Spot Sizes: 13×20 mm, 13×30 mm, 13×40 mm, ∮8 mm
• Laser Energy: Adjustable (1–120 J/cm²)
• Pulse Width: Adjustable (10–350 ms)
• Frequency: Adjustable (1–10 Hz)
• Wavelength: Triple Wavelength

Cooling System

• Methods: Air wind, water cooling, radiator, and TEC cooling system
• Laser Cooling Liquid: Distilled Water / 0 TDS Water

Operation & Display

• Control Panel: 12.1-inch TFT touch screen
• Beam Type: Collimated
