FRACTIONAL CO₂ RF-PRO

Smart Technology Visible Rejuvenation

The Fractional CO₂RF-Pro is an advanced skin rejuvenation device that combines fractional CO₂ laser and radiofrequency (RF) technology. It effectively treats wrinkles, scars, pigmentation, and skin laxity by stimulating collagen production, promoting skin resurfacing, and enhancing overall texture with minimal downtime and long-lasting results.

SKIN GLOW & REPAIR

SCAR CARE & SMOOTHNESS

LINES FADE & BRITHTNESS

The Fractional CO₂ RF-Pro is a state-of-the-art skin treatment system combining CO₂ laser and radiofrequency (RF) energy. It targets deep skin layers to improve wrinkles, acne scars, fine lines, and uneven texture. By stimulating collagen production and resurfacing the skin, it delivers firmer, smoother, and more youthful results with minimal discomfort and faster healing.

Designed for advanced skin rejuvenation, the Fractional CO₂ RF-Pro merges the precision of fractional CO₂ laser with the deep-penetrating benefits of RF energy. It treats aging signs, scars, pigmentation, and skin laxity by promoting natural collagen renewal. The device ensures effective results with minimal downtime, making it ideal for both aesthetic clinics and dermatology practices.

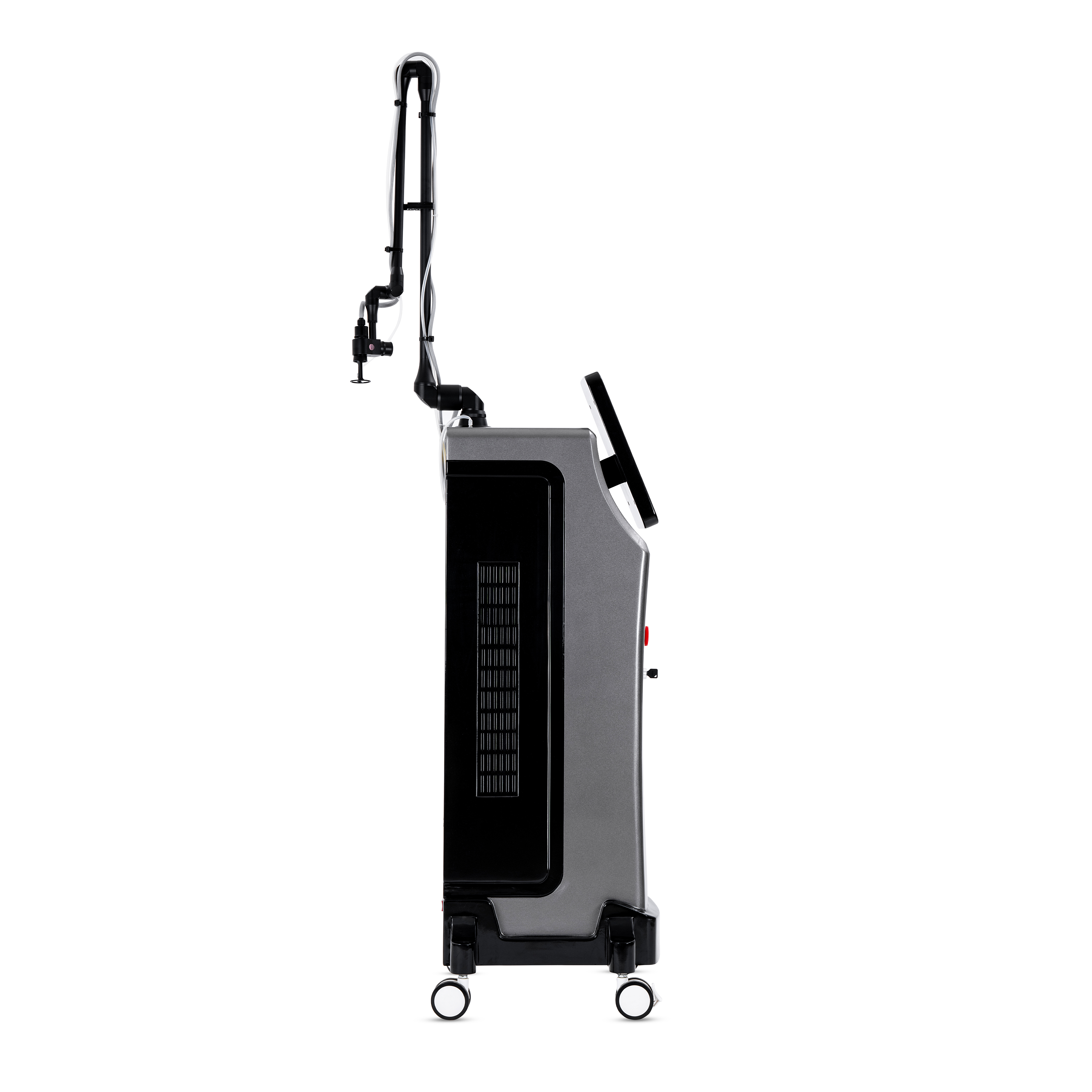

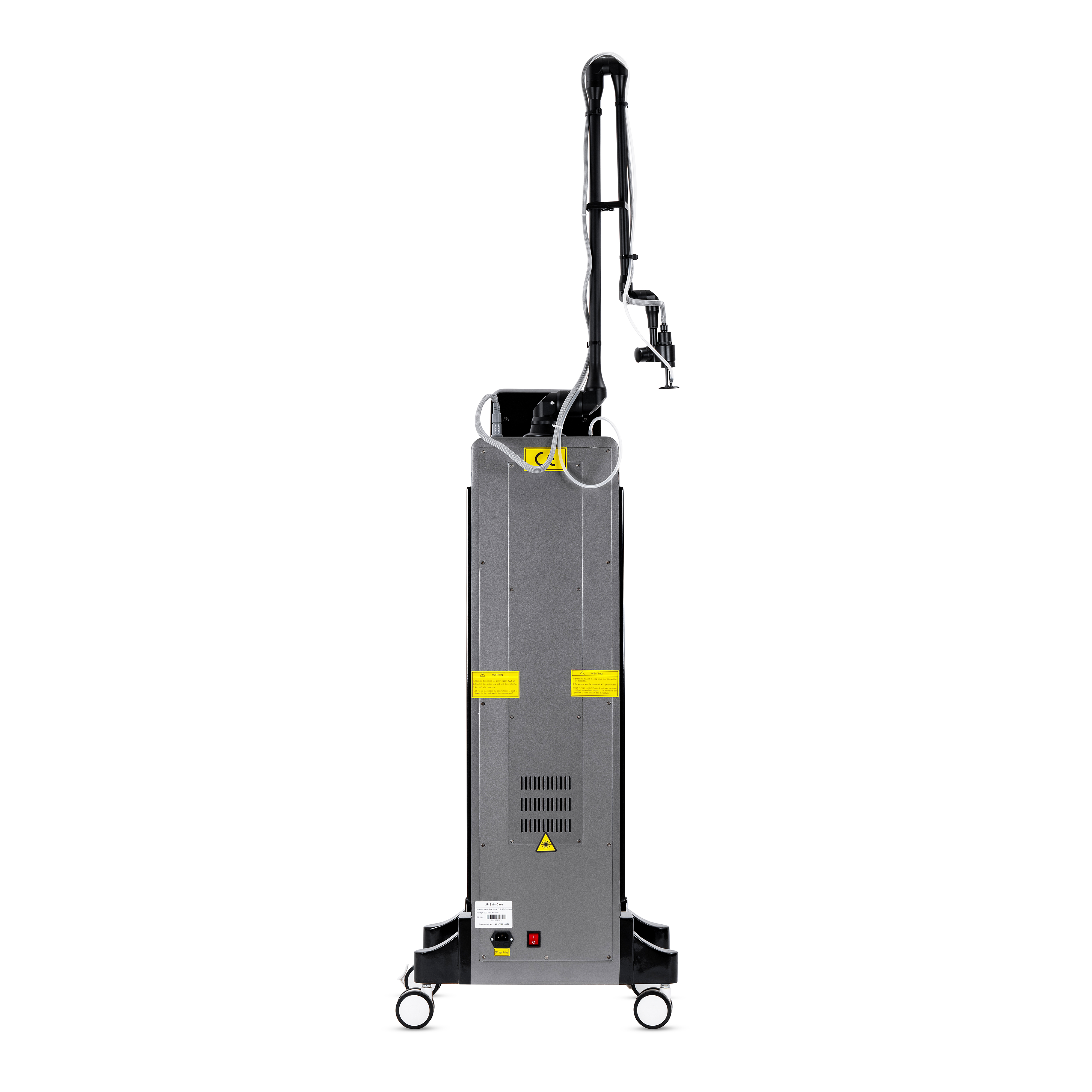

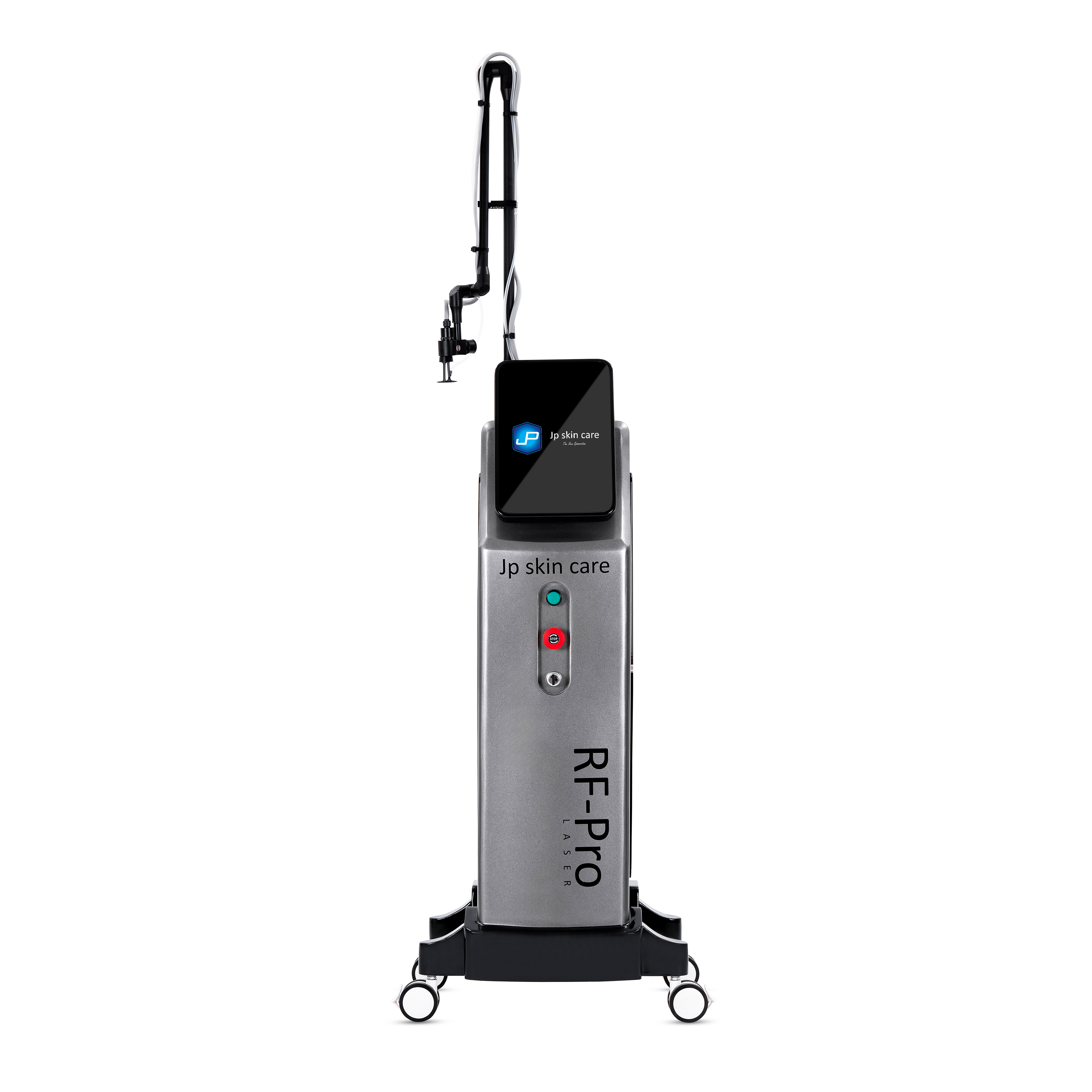

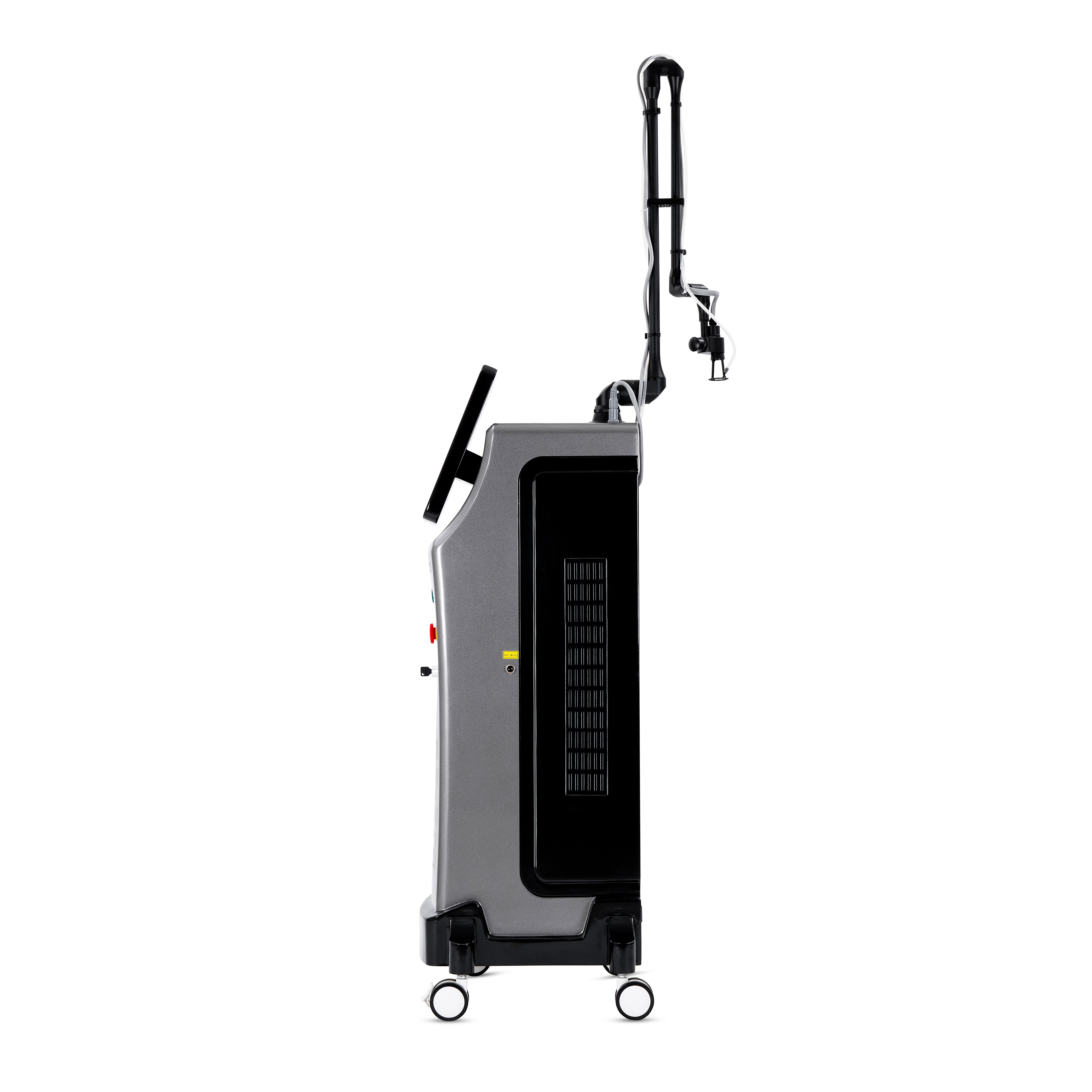

Fractional CO₂ RF-Pro (JP-20)

Accessories Included

Main Unit × 1
7-Joint Articulated Arm × 1
Fractional Scan × 1
Surgical Tip Set × 1

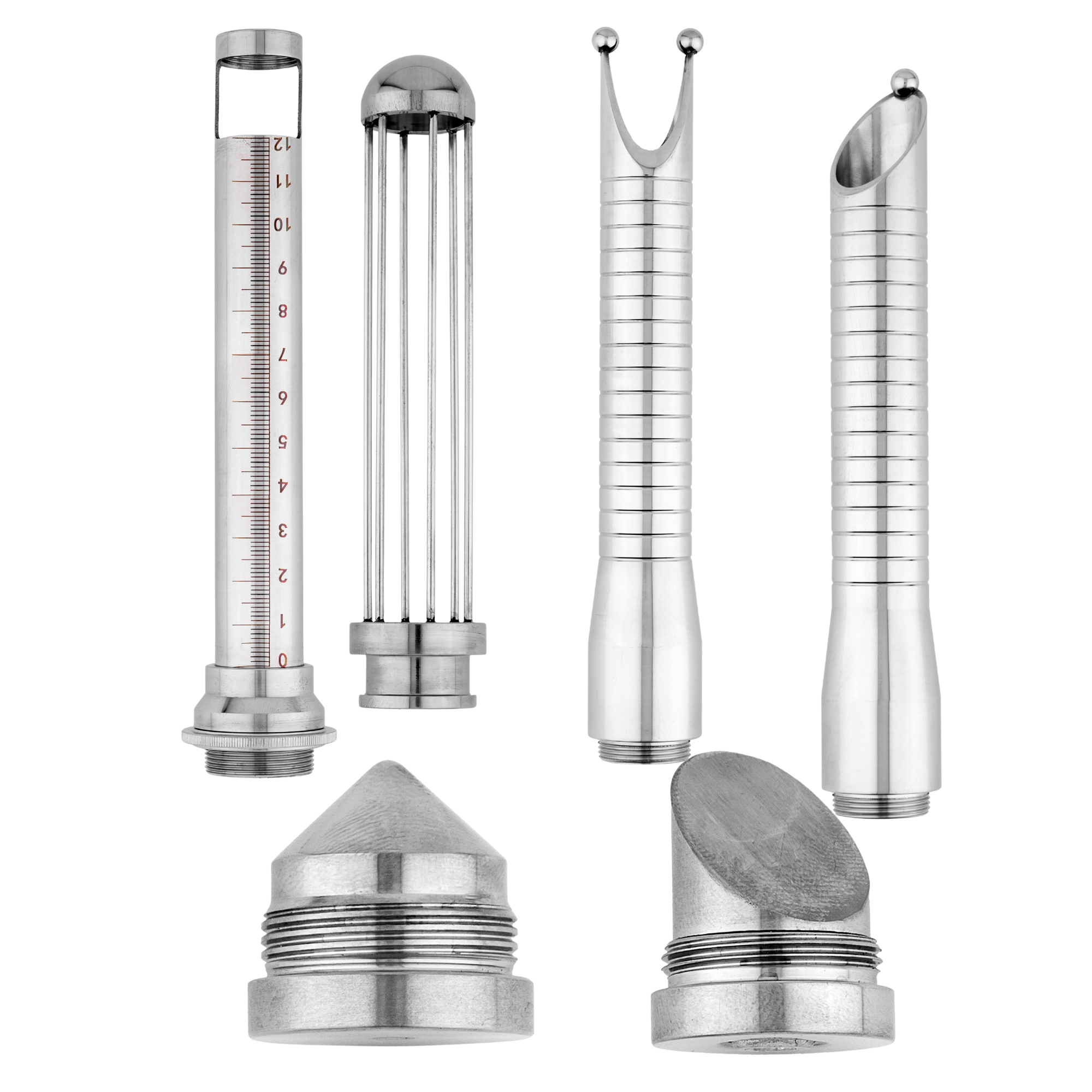

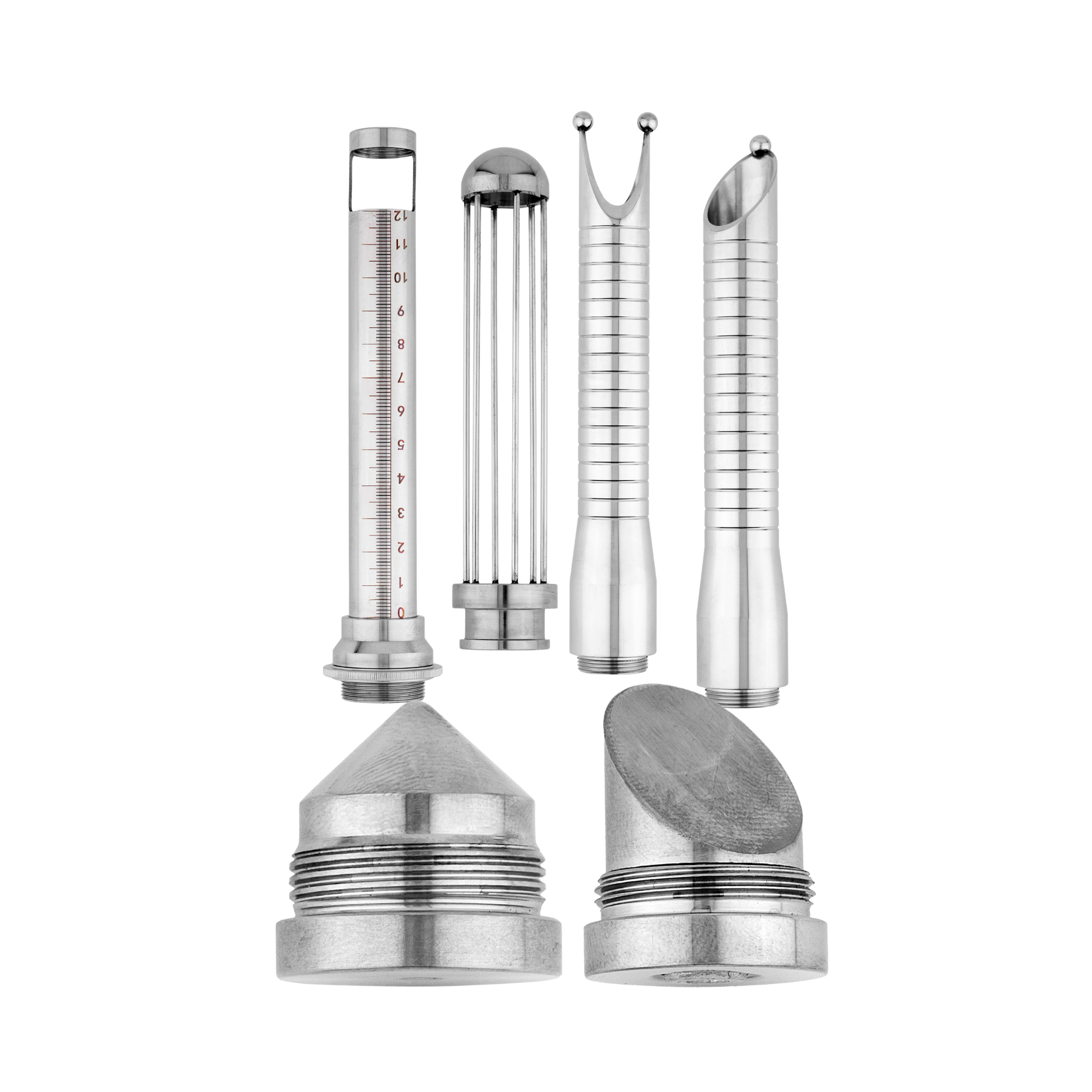

Gynecological Tips Set × 1
Foot Pedal × 1
Doctor Goggles × 1
Patient Eyepatch × 1
Power Cable × 1

Warranty

1-Year Warranty on the machine and included accessories.
Note: Warranty does not cover physical damage.

Indications & Treatment Applications

Acne & Acne Scarring: Effectively treats active acne and reduces post-acne marks for smoother, clearer skin.
Eye Area Rejuvenation: Eliminates fine lines, crow’s feet, and dryness around the eyes for a more youthful appearance.
Anti-Aging & Skin Rejuvenation: Firms the skin, reduces wrinkles, and enhances overall skin texture and condition.
Pigmentary Lesions: Treats freckles, age spots, and other pigmentation irregularities.
Scar Treatment: Improves appearance of atrophic, hypertrophic, vascular, and fibrous scars.
Stretch Marks: Reduces stretch marks by stimulating collagen and improving elasticity.
Intimate Rejuvenation: Enhances tone and tightness in labia majora and vaginal canal. Improves firmness, moisture, elasticity, and overall intimate health.

Technical Specifications

Model No.: JP-20
Product Name: Fractional CO₂ RF-Pro
Laser Type: Anti-Aging Laser System
System Applications: Aesthetic, Surgical, Gynecological
Laser Tube: RF Metal Tube (USA Coherent)
Wavelength: 10600 nm
Output Power: 60 W
Energy Output: 0.5–60 W (Adjustable)
Transmission System: 7-Joint Articulated Arm with Auto-Balance
Indication Beam: Red Diode Laser (650 nm, ≤5 mW)
Working Modes: Fractional, Scan-Fractional, Gynecological Mode, Surgical Mode (Pulse, Continuous, Single), Intelligent Mode (Resurfacing, Wrinkles, Acne Scars, Pores, Stretch Marks, Pigmentation, Scars)
Pulse Interval: 1–5000 ms
Preset Programs: 55
Pulse Duration: 0.1–10 ms
Spot Distance: 0.1–2.6 mm (Adjustable)
Overlap: 1–20th
Pulse Mode On Time: 5–9999 ms
Pulse Mode Off Time: 5–9999 ms
Single Mode On Time: 5–9999 ms
Scanning Area: Up to 20 × 20 mm (Adjustable)
Scanning Graphics: Line, Square, Rectangle, Triangle, Hexagon, Circle, Ellipse
Scanning Mode: Midsplit, Disorder, Order
Environmental Temperature: 5°C ~ 40°C
Cooling System: Air cooling (No liquid required)
Laser Cooling Liquid: Not required
Operate Panel: 12.1 Inch Color LED Touch Screen
Colour: Black & Grey
Input Power: 230V AC, 50Hz
Warranty: 2-Year Machine
Weight: 52 KG
Dimensions (H × W × D): 140 × 66 × 58 cm

Working Modes

Fractional Mode: Creates microthermal zones to stimulate collagen regeneration while preserving surrounding tissue for faster healing and minimal downtime.
Scan-Fractional Mode: Customizable scanning patterns for targeted treatments with adjustable depth and density.
Continuous Mode: Constant output, suitable for surgical incisions and vaporization.
Pulse Mode: Controlled pulses reduce thermal damage, ideal for delicate areas.
Ultra-Pulse Mode: Ultra-short, high-energy pulses for deep penetration, ideal for scars and deep wrinkles.
Gynecological Mode: Non-invasive intimate rejuvenation to improve tone, elasticity, and collagen synthesis.

Intelligent Mode

Pre-programmed protocols for targeted treatments, including:

Skin Resurfacing
Wrinkle Reduction
Acne Scars
Enlarged Pores
Stretch Marks
Pigmented Lesions
General Scars

Key Functions & Accessories

Fractional & Scan-Fractional

Pulse & Ultra-Pulse

Gynecological

Continuous Mode

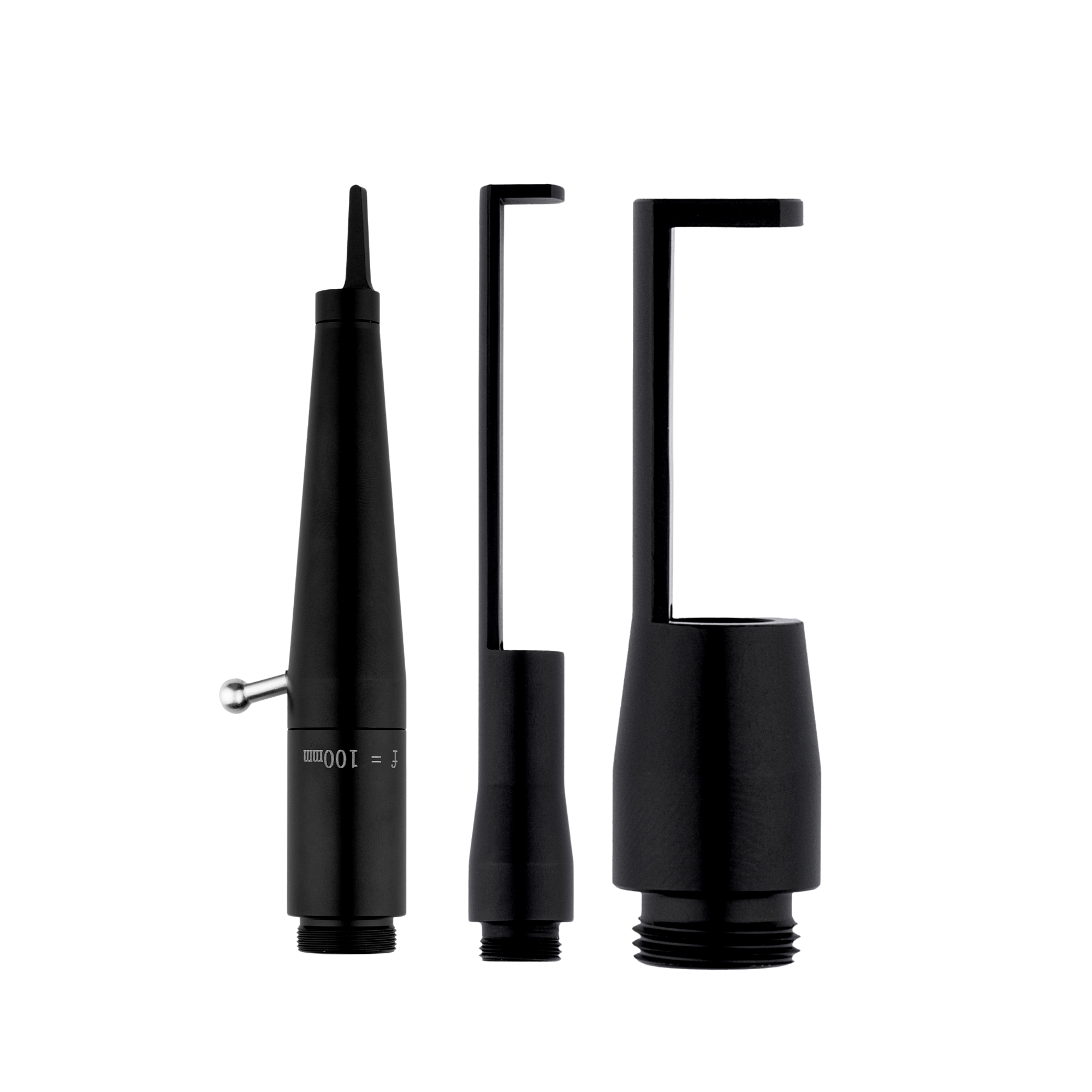

Surgical Tip

Gyne Tip

FRACTIONAL CO ₂ 2RF-PRO

Advanced Laser Technology for Skin Resurfacing & Intimate Rejuvenation
