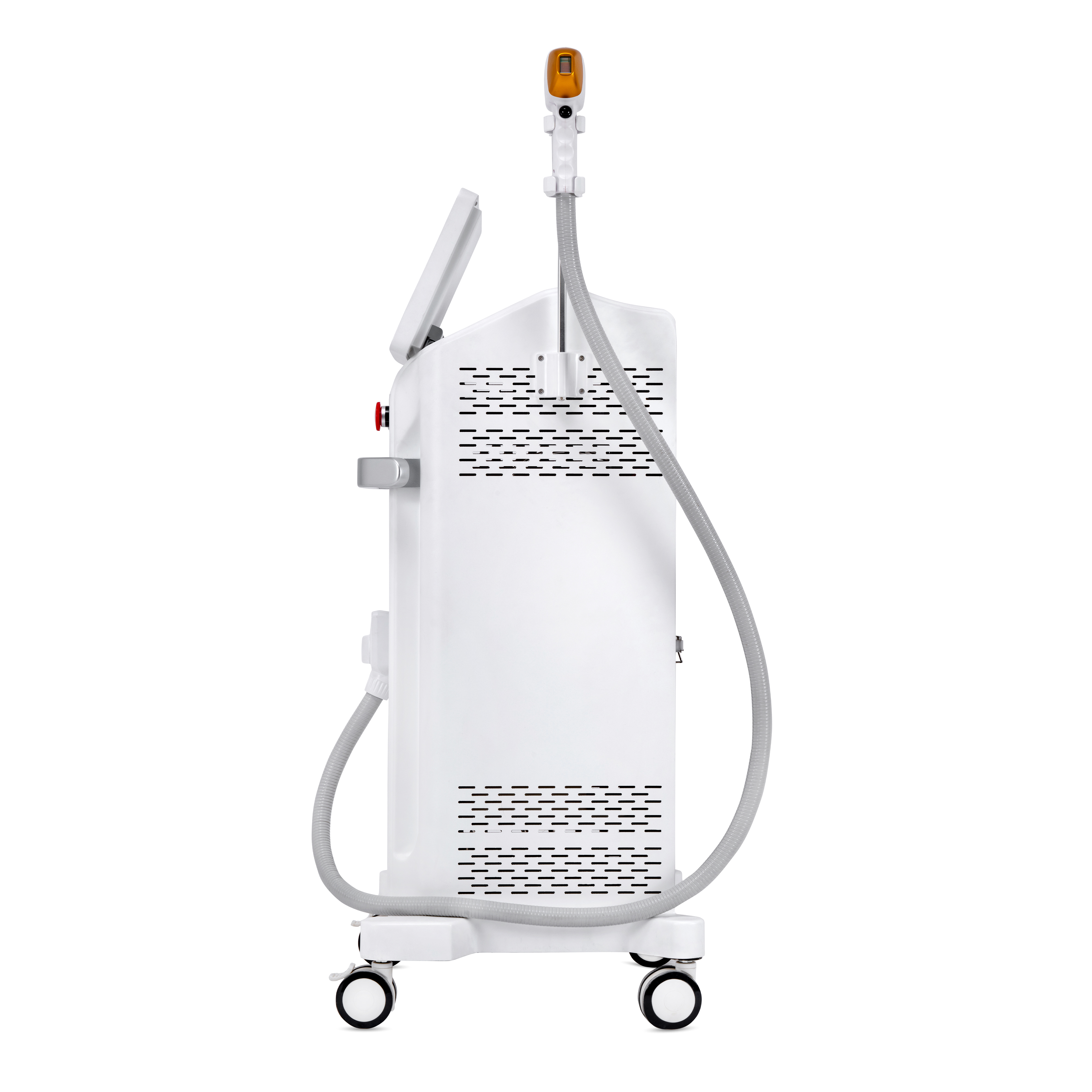

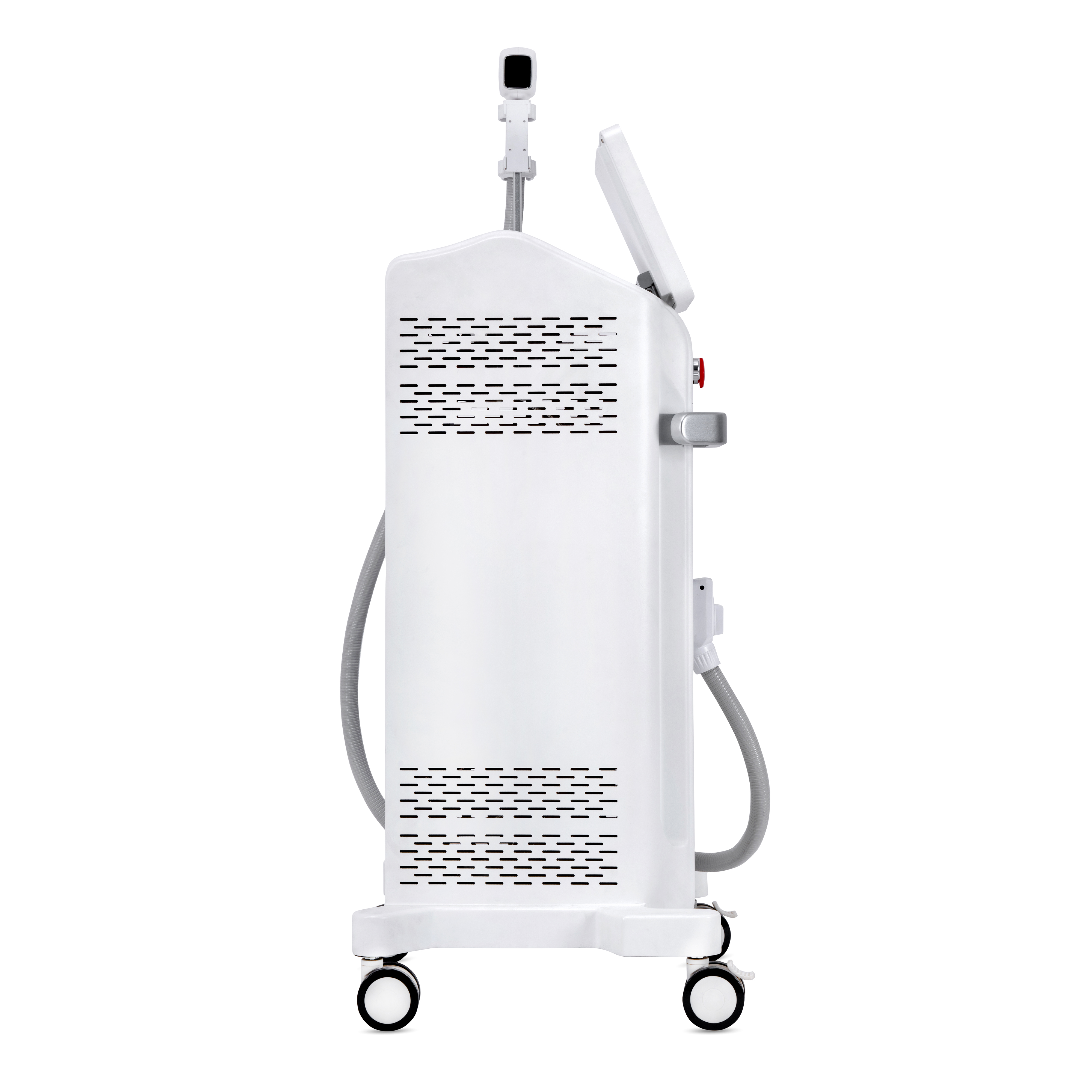

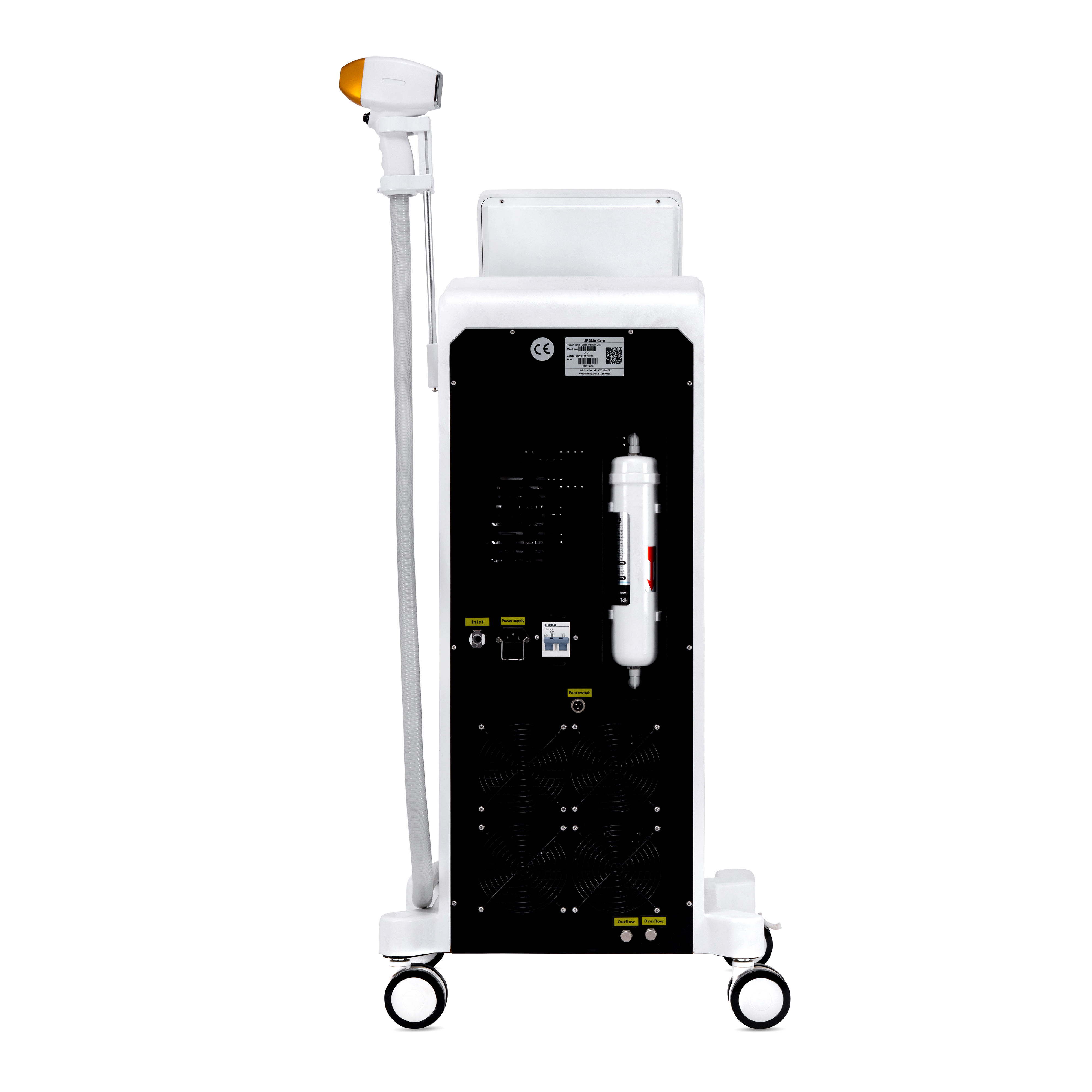

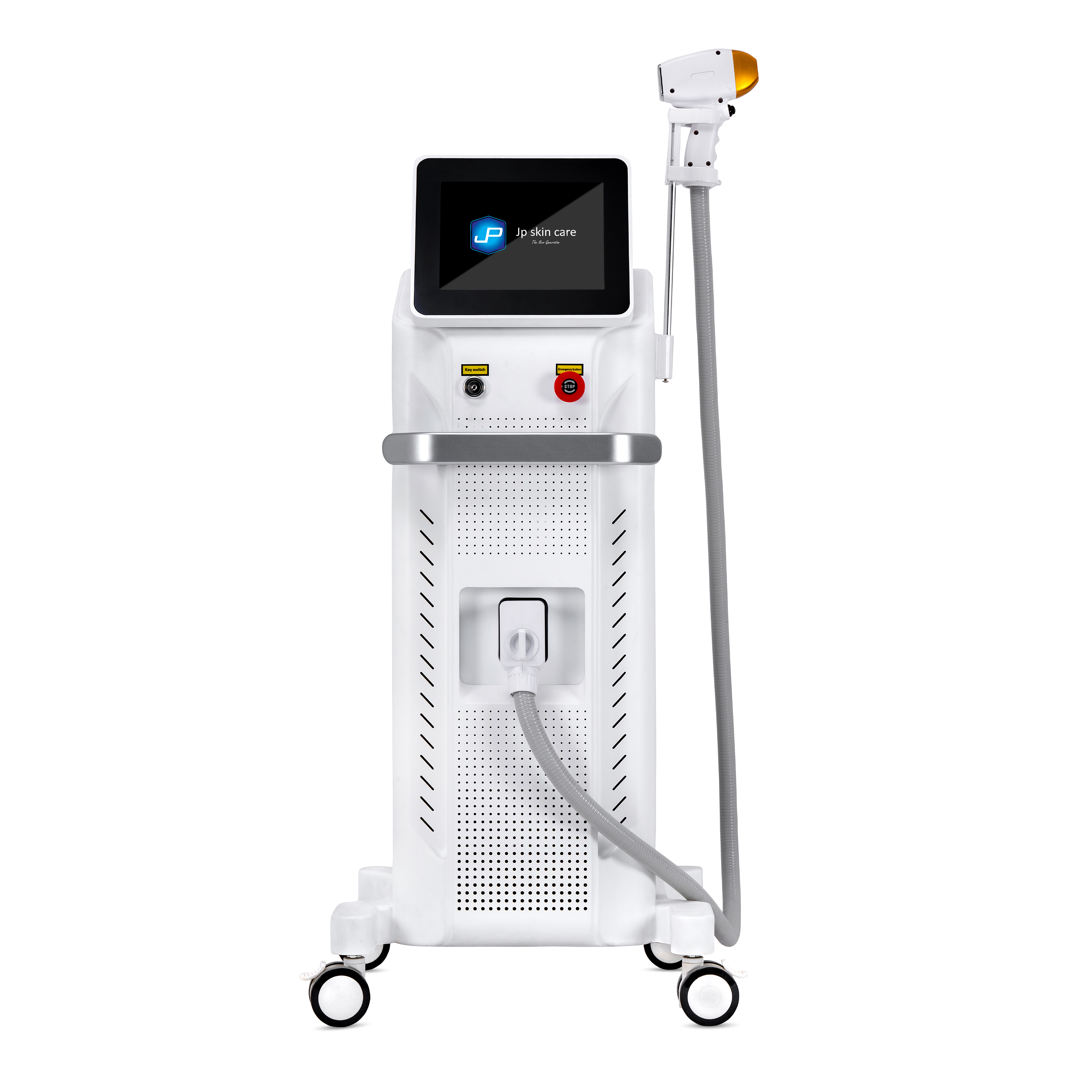

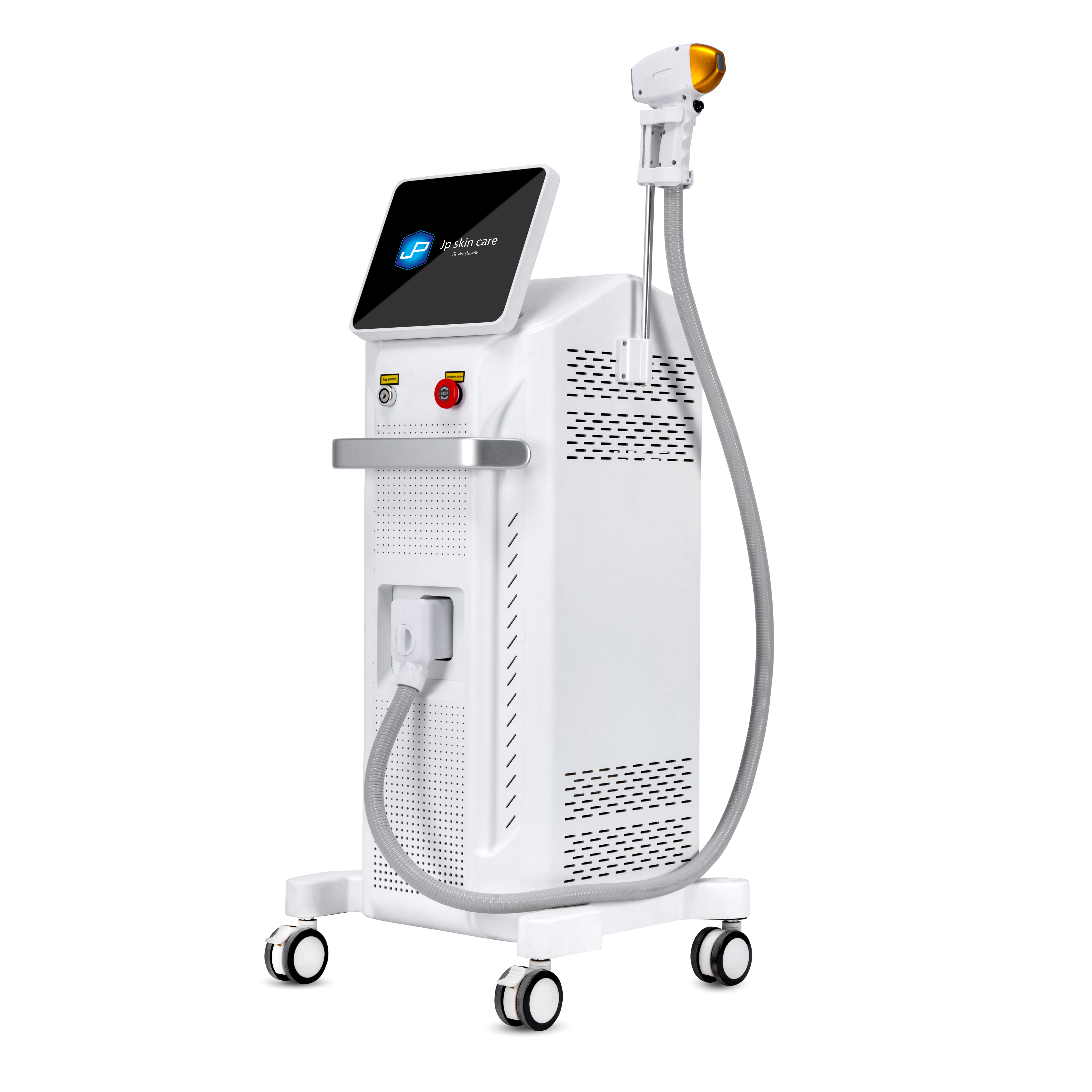

Diode Titanium-Ultra (JP-08)

Wavelength Features

• 755 nm: Offers strong melanin absorption, ideal for fine or light-colored hair. Effectively targets the bulge area of the follicle, useful for superficial encrustations.
• 808 nm: Industry-standard wavelength for hair removal. Provides deep follicle penetration with high power output—suitable for most hair and skin types.
• 940 nm: Designed for coarser, thicker hair. Penetrates deeper into the skin to reach lower follicular structures and subcutaneous layers.
• 1064 nm: Absorbed less by melanin, making it safe for darker skin tones. Provides the deepest penetration to reach and treat deeply rooted follicles.

Accessories Included

• Main Unit × 1

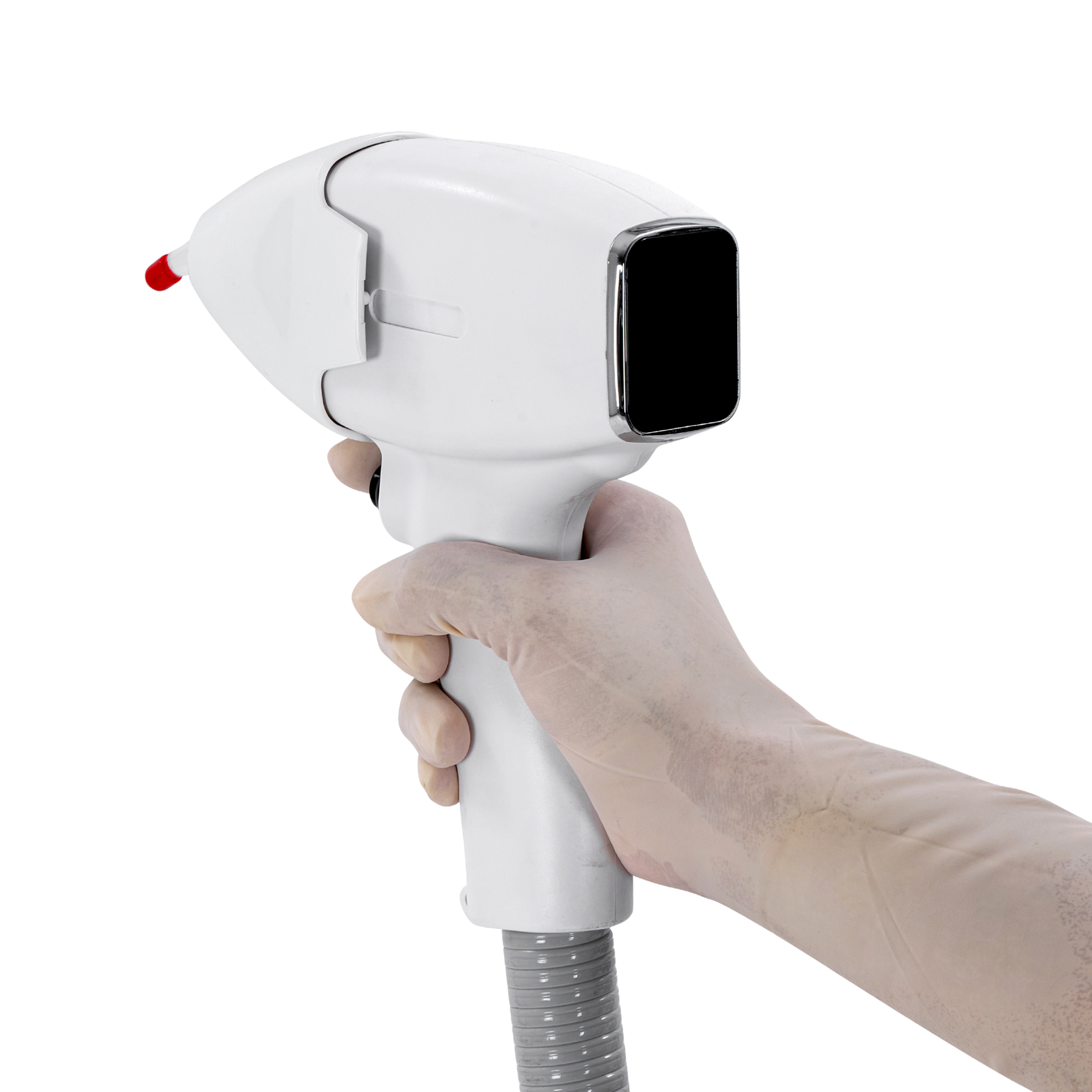

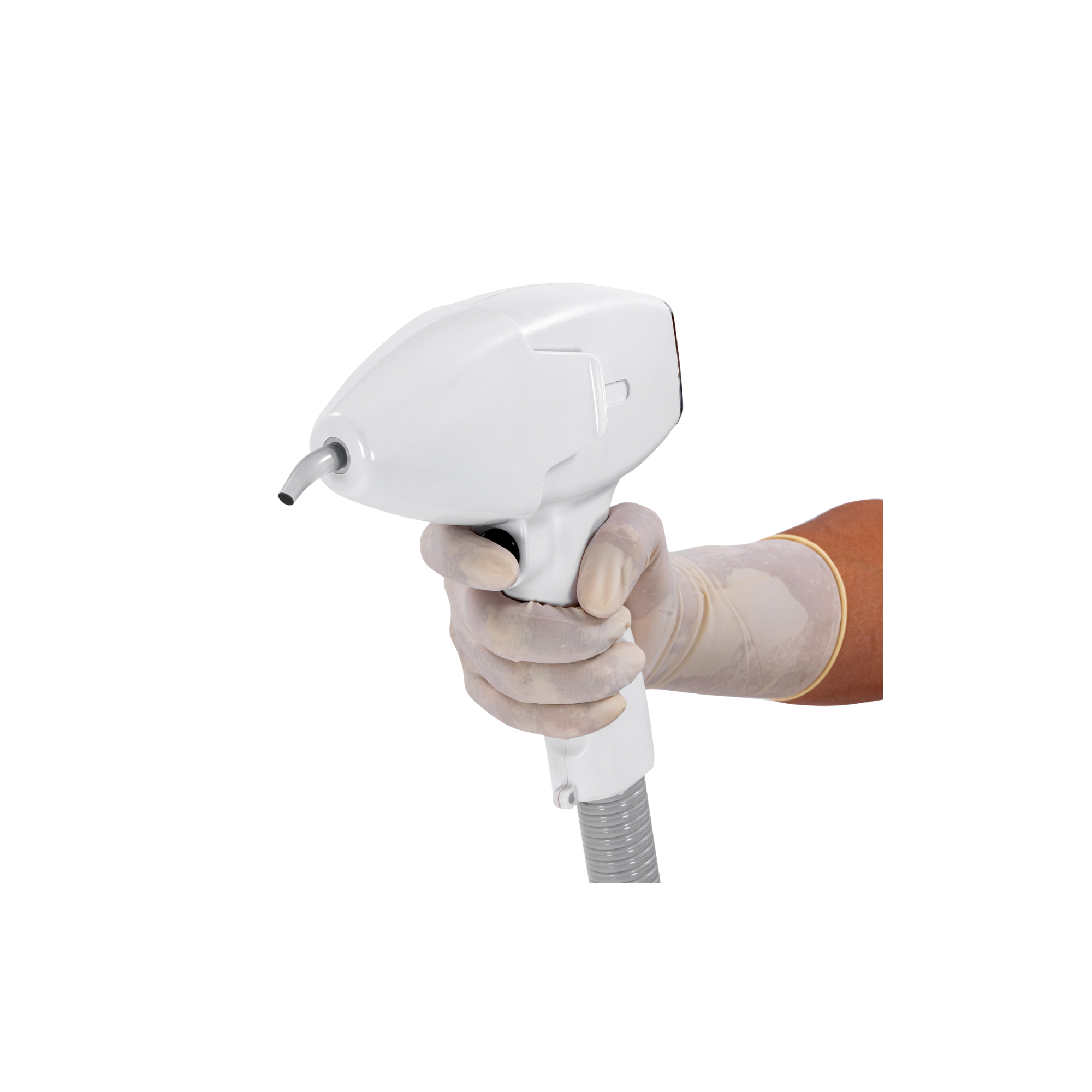

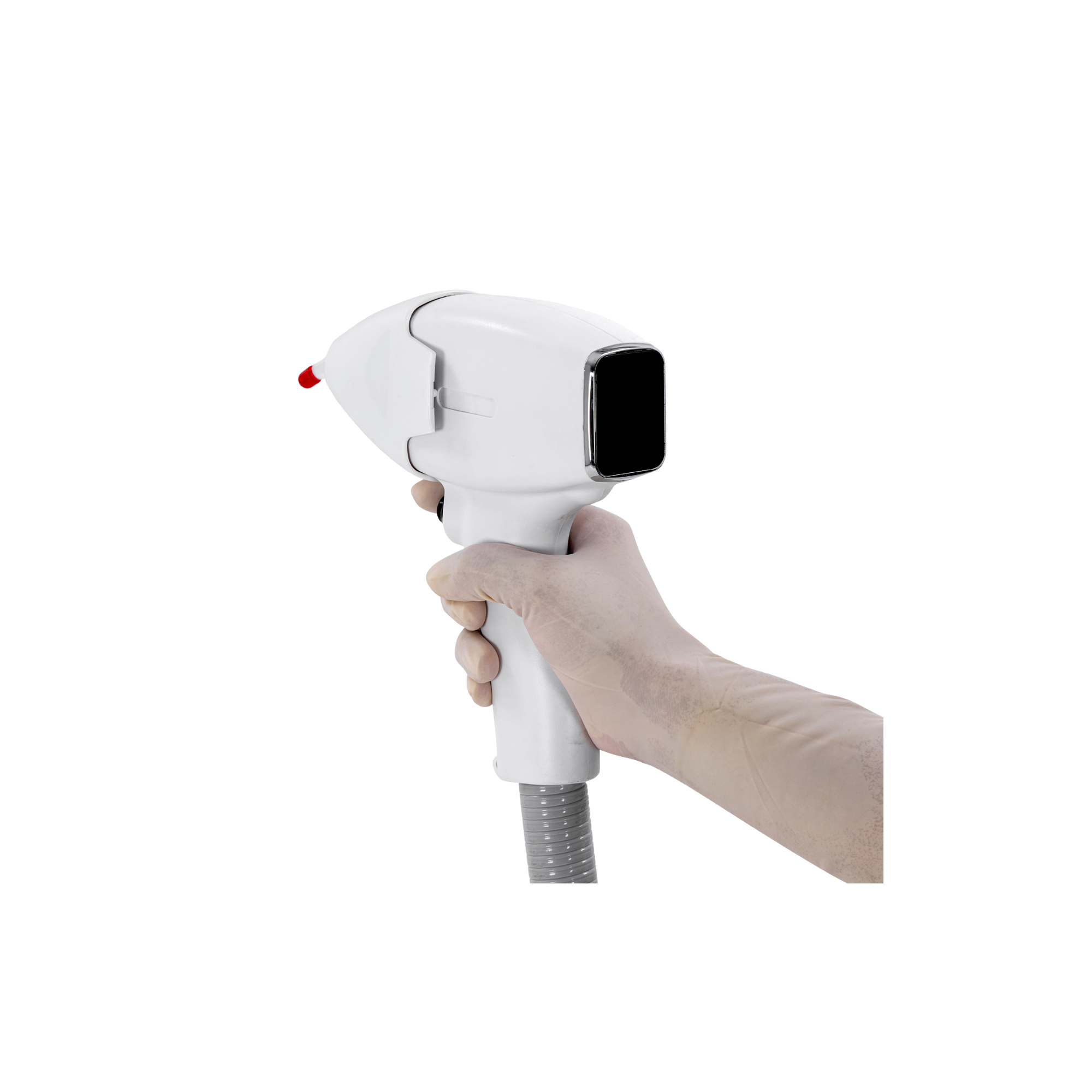

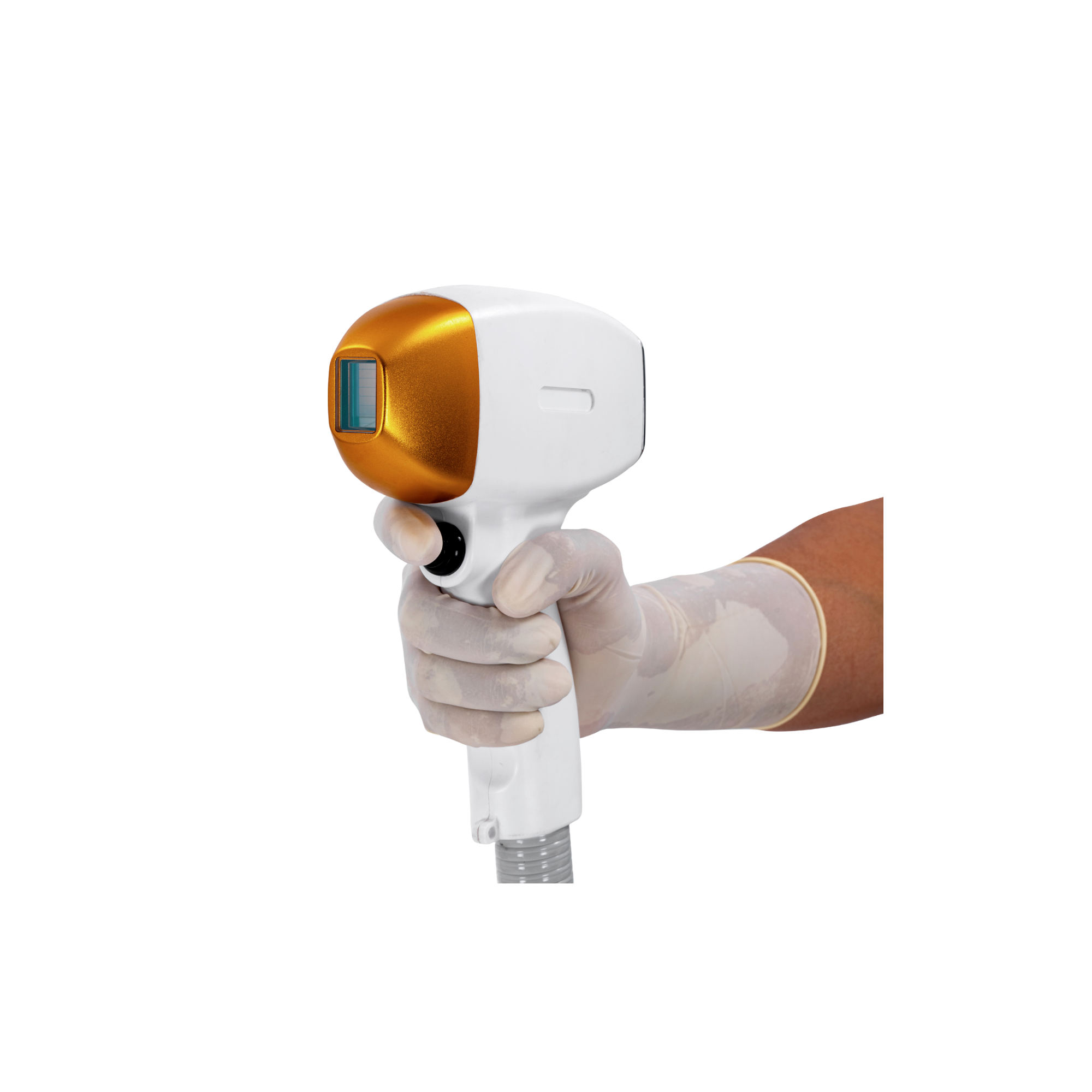

• Diode Handle × 1
• Handle Stand × 1
• Diode Nose Tips × 1
• Operator Goggle × 1
• Patient Eye Protection × 1
• Foot Pedal × 1
• Key × 2
• Gel (5kg Jar) × 1
• Water Filter × 1
• Water Funnel × 1
• Power Cable × 1

Technical Specifications

• Model No.: JP-08
• Product Name: Titanium-Ultra
• Laser Type: Hair Reduction Laser System
• Laser Chip: USA Coherent
• Output Power: 1200 W
• No. of Laser Chips: 12
• Spot Size: 15 × 28 mm, ∮8 mm
• Laser Energy: 0–120 J/cm² Adjustable
• Pulse Width: 10–400 ms (Auto Adjustable)
• Frequency: 0–10 Hz Adjustable
• Wavelength: Quadruple wavelength
• Cooling System: Air wind, water cooling, radiator, and TEC cooling
• Laser Cooling Liquid: Distilled Water / 0 TDS Water
• Operate Panel: 10.4-inch TFT touch screen
• Beam Type: Collimated
• Colour: White
• Input Power: 230V AC, 50Hz
• Warranty: 2-Year Machine
• Weight: 67 KG
• Dimensions (H × W × D): 120 × 62 × 79 cm

Features

• Hair Reduction
